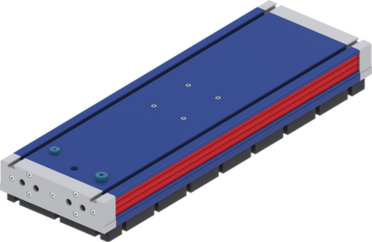

ZGA80X150-32-FS1

Vacuüm-grijpsysteem
Serie ZGA
- Afmetingen: 80x150 mm - 300x1200 mm
- Krachtig
- Volumestroom: 171 l/min - 2896 l/min
- Luchtverbruik: 208 l/min - 832 l/min
- Vacuümniveau max.: -85 kPa
- Compatibel met foam en Magic Cups
- ESC-ventieltechnologie voor bovenafzuiging
Technische gegevens
Afmetingen | 80x150 [mm] |
Type vacuümgenerator | Vacuümpatroon |
Type vacuümpatroon | ZVC203 |
Aantal persluchtaansluitingen | 1 |
Niveaus en aantal vacuümpatronen | 2 |
Afdichtingselement | Afdichtingsschuimmat |
Bedrijfsdruk max. | 7 [bar] |
Persluchtaansluiting | G1/4" binnen |
Hoogte van het afdichtingselement | 10 [mm] |
Geluidsniveau max. | 65 [dB] |
Gatenpatroon van de afdichtingsschuimmat | Rond Ø5 |
ondoordringbaar voor lucht | |
Verwisselbare afzuigplaat | Ja |
Luchtverbruik bij 4 bar | 64 [l/min] |
Aantal trappen Vacuümpatroon | 3 |
Kleptype van de gebiedsgrijper | Stromingsweerstand |
Vacuümfilter | Ja |
Gewicht | 1 [kg] |
Volumestroom | 171 [l/min] |
