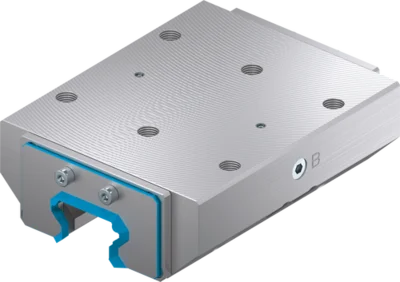

• Uitgebreid productassortiment
    Voor alle gangbare profielrailgeleidingen
  • Energieloos geopend (maakcontact NO)
    Met druk sluitend
  • Uiterst duurzaam
    Tot 10 miljoen statische klemcycli
Bestelnr.HoudkrachtNominale bedrijfsdrukMontagerichting
KBH2501CS12200 [N]100.0 [bar]van voren
KBH2501CS1A2200 [N]100.0 [bar]van voren
KBH2501ES12200 [N]100.0 [bar]van voren
KBH2501ES1A2200 [N]100.0 [bar]van voren
KBH2505AS12200 [N]100.0 [bar]van voren
KBH2505AS1A2200 [N]100.0 [bar]van voren
KBH2505BS12200 [N]100.0 [bar]van voren
KBH2505BS1A2200 [N]100.0 [bar]van voren
KBH2510BS12200 [N]100.0 [bar]van voren
KBH2510BS1A2200 [N]100.0 [bar]van voren
KBH2512ES12200 [N]100.0 [bar]van voren
KBH2512ES1A2200 [N]100.0 [bar]van voren
KBH2514AS12200 [N]100.0 [bar]van voren
KBH2514AS1A2200 [N]100.0 [bar]van voren
KBH2501BS11600 [N]100.0 [bar]van boven
KBH2501BS1A1600 [N]100.0 [bar]van voren
KBH2501IS11600 [N]100.0 [bar]van voren
KBH2510DS12200 [N]100.0 [bar]van voren
KBH2510DS1A2200 [N]100.0 [bar]van voren
KBH2502BS12200 [N]100.0 [bar]van voren
KBH2502BS1A2200 [N]100.0 [bar]van voren
KBH2504BS12200 [N]100.0 [bar]van boven
KBH2504BS1A2200 [N]100.0 [bar]van voren
KBH2504FS12200 [N]100.0 [bar]van voren
KBH2504FS1A2200 [N]100.0 [bar]van voren
KBH2510AS12200 [N]100.0 [bar]van boven
KBH2510AS1A2200 [N]100.0 [bar]van voren
KBH2501AS12200 [N]100.0 [bar]van voren
KBH2501AS1A2200 [N]100.0 [bar]van voren
KBH2502AS12200 [N]100.0 [bar]van voren
KBH2502AS1A2200 [N]100.0 [bar]van voren
KBH2503AS12200 [N]100.0 [bar]van voren
KBH2503AS1A2200 [N]100.0 [bar]van voren
KBH2512FS12200 [N]100.0 [bar]van voren
KBH2512FS1A2200 [N]100.0 [bar]van voren
KBH3001CS13000 [N]100.0 [bar]van voren
KBH3001CS1A3000 [N]100.0 [bar]van voren
KBH3001ES13000 [N]100.0 [bar]van voren
KBH3001ES1A3000 [N]100.0 [bar]van voren
KBH3010BS13000 [N]100.0 [bar]van voren
KBH3010BS1A3000 [N]100.0 [bar]van voren
KBH3014AS13000 [N]100.0 [bar]van voren
KBH3014AS1A3000 [N]100.0 [bar]van voren
KBH3014CS13000 [N]100.0 [bar]van voren
KBH3001BS12100 [N]100.0 [bar]van boven
KBH3001BS1A2100 [N]100.0 [bar]van voren
KBH3001IS12100 [N]100.0 [bar]van boven
KBH3004AS13000 [N]100.0 [bar]van boven
KBH3004AS1A3000 [N]100.0 [bar]van voren
KBH3004BS13000 [N]100.0 [bar]van boven
KBH3004BS1A3000 [N]100.0 [bar]van voren
KBH3004FS13000 [N]100.0 [bar]van voren
KBH3004FS1A3000 [N]100.0 [bar]van voren
KBH3010AS13000 [N]100.0 [bar]van boven
KBH3010AS1A3000 [N]100.0 [bar]van voren
KBH3001AS13000 [N]100.0 [bar]van voren
KBH3001AS1A3000 [N]100.0 [bar]van voren
KBH3002AS13000 [N]100.0 [bar]van voren
KBH3002AS1A3000 [N]100.0 [bar]van voren
KBH3002BS13000 [N]100.0 [bar]van voren
KBH3002BS1A3000 [N]100.0 [bar]van voren
KBH3012ES13000 [N]100.0 [bar]van voren
KBH3012ES1A3000 [N]100.0 [bar]van voren
KBH3012FS13000 [N]100.0 [bar]van voren
KBH3012FS1A3000 [N]100.0 [bar]van voren
KBH3012CS13000 [N]100.0 [bar]van voren
KBH3012CS1A3000 [N]100.0 [bar]van voren
KBH3012FS33000 [N]100.0 [bar]van voren
KBH3012FS3A3000 [N]100.0 [bar]van voren
KBH3014GS13000 [N]100.0 [bar]van voren
KBH3014GS1A3000 [N]100.0 [bar]van voren
KBH3501AS15700 [N]150.0 [bar]van voren
KBH3501AS1A5700 [N]150.0 [bar]van voren
KBH3501BS14300 [N]150.0 [bar]van boven
KBH3501BS1A4300 [N]150.0 [bar]van voren
KBH3501CS15700 [N]150.0 [bar]van voren
KBH3501CS1A5700 [N]150.0 [bar]van voren
KBH3501ES15700 [N]150.0 [bar]van voren
KBH3501ES1A5700 [N]150.0 [bar]van voren
KBH3501ES33500 [N]100.0 [bar]van voren
KBH3501ES3A3500 [N]100.0 [bar]van voren
KBH3501IS14300 [N]150.0 [bar]van boven
KBH3502AS15700 [N]150.0 [bar]van voren
KBH3502AS1A5700 [N]150.0 [bar]van voren
KBH3502BS15700 [N]150.0 [bar]van voren
KBH3502BS1A5700 [N]150.0 [bar]van voren
KBH3503AS15700 [N]150.0 [bar]van voren
KBH3503AS1A5700 [N]150.0 [bar]van voren
KBH3503AS33500 [N]100.0 [bar]van voren
KBH3503AS3A3500 [N]100.0 [bar]van voren
KBH3504AS15700 [N]150.0 [bar]van boven
KBH3504AS1A5700 [N]150.0 [bar]van voren
KBH3504BS15700 [N]150.0 [bar]van boven
KBH3504BS1A5700 [N]150.0 [bar]van voren
KBH3504FS15700 [N]150.0 [bar]van voren
KBH3504FS1A5700 [N]150.0 [bar]van voren
KBH3504FS33500 [N]100.0 [bar]van voren
KBH3504FS3A3500 [N]100.0 [bar]van voren
KBH3505AS15700 [N]150.0 [bar]van voren
KBH3505AS1A5700 [N]150.0 [bar]van voren
KBH3505BS15700 [N]150.0 [bar]van voren
KBH3505BS1A5700 [N]150.0 [bar]van voren
KBH3505BS33500 [N]100.0 [bar]van voren
KBH3505BS3A3500 [N]100.0 [bar]van voren
KBH3510AS15700 [N]150.0 [bar]van boven
KBH3510AS1A5700 [N]150.0 [bar]van voren
KBH3510BS15700 [N]150.0 [bar]van voren
KBH3510BS1A5700 [N]150.0 [bar]van voren
KBH3510BS33500 [N]100.0 [bar]van voren
KBH3510BS3A3500 [N]100.0 [bar]van voren
KBH3512FS15700 [N]150.0 [bar]van voren
KBH3512FS1A5700 [N]150.0 [bar]van voren
KBH3514AS15700 [N]150.0 [bar]van voren
KBH3514AS1A5700 [N]150.0 [bar]van voren
KBH-NICHT-MOEGLICH
KBH3512ES1-A5700 [N]150.0 [bar]van voren
KBH3512ES1A-A5700 [N]150.0 [bar]van voren
KBH4501AS19900 [N]150.0 [bar]van voren
KBH4501AS1A9900 [N]150.0 [bar]van voren
KBH4501BS17400 [N]150.0 [bar]van boven
KBH4501BS1A7400 [N]150.0 [bar]van voren
KBH4501CS19900 [N]150.0 [bar]van voren
KBH4501CS1A9900 [N]150.0 [bar]van voren
KBH4501ES19900 [N]150.0 [bar]van voren
KBH4501ES1A9900 [N]150.0 [bar]van voren
KBH4501IS17400 [N]150.0 [bar]van boven
KBH4502AS19900 [N]150.0 [bar]van voren
KBH4502AS1A9900 [N]150.0 [bar]van voren
KBH4502BS19900 [N]150.0 [bar]van voren
KBH4502BS1A9900 [N]150.0 [bar]van voren
KBH4502DS19900 [N]150.0 [bar]van voren
KBH4502DS1A9900 [N]150.0 [bar]van voren
KBH4503AS19900 [N]150.0 [bar]van voren
KBH4503AS1A9900 [N]150.0 [bar]van voren
KBH4503AS37400 [N]100.0 [bar]van voren
KBH4503AS3A7400 [N]100.0 [bar]van voren
KBH4504BS19900 [N]150.0 [bar]van boven
KBH4504BS1A9900 [N]150.0 [bar]van voren
KBH4505AS19900 [N]150.0 [bar]van voren
KBH4505AS1A9900 [N]150.0 [bar]van voren
KBH4505AS27400 [N]100.0 [bar]van voren
KBH4505AS2A7400 [N]100.0 [bar]van voren
KBH4505BS19900 [N]150.0 [bar]van voren
KBH4505BS1A9900 [N]150.0 [bar]van voren
KBH4505BS37400 [N]100.0 [bar]van voren
KBH4505BS3A7400 [N]100.0 [bar]van voren
KBH4510AS19900 [N]150.0 [bar]van boven
KBH4510AS1A9900 [N]150.0 [bar]van voren
KBH4510BS19900 [N]150.0 [bar]van voren
KBH4510BS1A9900 [N]150.0 [bar]van voren
KBH4512FS19900 [N]150.0 [bar]van voren
KBH4512FS1A9900 [N]150.0 [bar]van voren
KBH4514AS19900 [N]150.0 [bar]van voren
KBH4514AS1A9900 [N]150.0 [bar]van voren
KBH4514CS19900 [N]150.0 [bar]van voren
KBH4514ES19900 [N]150.0 [bar]van voren
KBH4514ES1A9900 [N]150.0 [bar]van voren
KBH4512FS37400 [N]100.0 [bar]van voren
KBH4512FS3A7400 [N]100.0 [bar]van voren
KBH4514ES37400 [N]100.0 [bar]van voren
KBH4514ES3A7400 [N]100.0 [bar]van voren
KBH4501PS17400 [N]150.0 [bar]van boven
KBH4501PS1A7400 [N]150.0 [bar]van voren
KBH4504FS19900 [N]150.0 [bar]van voren
KBH4504FS1A9900 [N]150.0 [bar]van voren
KBH4512ES19900 [N]150.0 [bar]van voren
KBH4512ES1A9900 [N]150.0 [bar]van voren
KBH4510BS37400 [N]100.0 [bar]van voren
KBH4510BS3A7400 [N]100.0 [bar]van voren
KBH4515AS19900 [N]150.0 [bar]van voren
KBH4515BS19900 [N]150.0 [bar]van voren
KBH5501AS113700 [N]150.0 [bar]van voren
KBH5501AS1A13700 [N]150.0 [bar]van voren
KBH5501BS110200 [N]150.0 [bar]van boven
KBH5501BS1A10200 [N]150.0 [bar]van voren
KBH5501CS113700 [N]150.0 [bar]van voren
KBH5501CS1A13700 [N]150.0 [bar]van voren
KBH5501ES113700 [N]150.0 [bar]van voren
KBH5501ES1A13700 [N]150.0 [bar]van voren
KBH5501IS110200 [N]150.0 [bar]van boven
KBH5502AS113700 [N]150.0 [bar]van voren
KBH5502AS1A13700 [N]150.0 [bar]van voren
KBH5502DS113700 [N]150.0 [bar]van voren
KBH5502DS1A13700 [N]150.0 [bar]van voren
KBH5503AS113700 [N]150.0 [bar]van voren
KBH5503AS1A13700 [N]150.0 [bar]van voren
KBH5503AS313700 [N]150.0 [bar]van voren
KBH5503AS3A13700 [N]150.0 [bar]van voren
KBH5504BS113700 [N]150.0 [bar]van boven
KBH5504BS1A13700 [N]150.0 [bar]van voren
KBH5504FS113700 [N]150.0 [bar]van voren
KBH5504FS1A13700 [N]150.0 [bar]van voren
KBH5505AS113700 [N]150.0 [bar]van voren
KBH5505AS1A13700 [N]150.0 [bar]van voren
KBH5505BS113700 [N]150.0 [bar]van voren
KBH5505BS1A13700 [N]150.0 [bar]van voren
KBH5505BS313700 [N]150.0 [bar]van voren
KBH5505BS3A13700 [N]150.0 [bar]van voren
KBH5510AS113700 [N]150.0 [bar]van boven
KBH5510AS1A13700 [N]150.0 [bar]van voren
KBH5510BS113700 [N]150.0 [bar]van voren
KBH5510BS1A13700 [N]150.0 [bar]van voren
KBH5510BS313700 [N]150.0 [bar]van voren
KBH5510BS3A13700 [N]150.0 [bar]van voren
KBH5512FS113700 [N]150.0 [bar]van voren
KBH5512FS1A13700 [N]150.0 [bar]van voren
KBH5514ES113700 [N]150.0 [bar]van voren
KBH5514ES1A13700 [N]150.0 [bar]van voren
KBH5505BS213700 [N]150.0 [bar]van voren
KBH5505BS2A13700 [N]150.0 [bar]van voren
KBH5514GS113700 [N]150.0 [bar]van voren
KBH5514GS1A13700 [N]150.0 [bar]van voren
KBH5501PS110200 [N]150.0 [bar]van boven
KBH5501PS1A10200 [N]150.0 [bar]van voren
KBH5515AS113700 [N]150.0 [bar]van voren
KBH5505BS413700 [N]150.0 [bar]van voren
KBH5505BS4A13700 [N]150.0 [bar]van voren
KBH3003AS13000 [N]100.0 [bar]van voren
KBH3003AS1A3000 [N]100.0 [bar]van voren
KBH6501AS122700 [N]150.0 [bar]van voren
KBH6501AS1A22700 [N]150.0 [bar]van voren
KBH6501BS117000 [N]150.0 [bar]van boven
KBH6501BS1A17000 [N]150.0 [bar]van voren
KBH6501CS122700 [N]150.0 [bar]van voren
KBH6501CS1A22700 [N]150.0 [bar]van voren
KBH6501ES122700 [N]150.0 [bar]van voren
KBH6501ES1A22700 [N]150.0 [bar]van voren
KBH6501IS117000 [N]150.0 [bar]van boven
KBH6501PS117000 [N]150.0 [bar]van boven
KBH6501PS1A17000 [N]150.0 [bar]van voren
KBH6502DS122700 [N]150.0 [bar]van voren
KBH6502DS1A22700 [N]150.0 [bar]van voren
KBH6503AS122700 [N]150.0 [bar]van voren
KBH6503AS1A22700 [N]150.0 [bar]van voren
KBH6503AS322700 [N]150.0 [bar]van voren
KBH6503AS3A22700 [N]150.0 [bar]van voren
KBH6504BS122700 [N]150.0 [bar]van boven
KBH6504BS1A22700 [N]150.0 [bar]van voren
KBH6505AS122700 [N]150.0 [bar]van voren
KBH6505AS1A22700 [N]150.0 [bar]van voren
KBH6505AS222700 [N]150.0 [bar]van voren
KBH6505AS2A22700 [N]150.0 [bar]van voren
KBH6505BS122700 [N]150.0 [bar]van voren
KBH6505BS1A22700 [N]150.0 [bar]van voren
KBH6505BS422700 [N]150.0 [bar]van voren
KBH6505BS4A22700 [N]150.0 [bar]van voren
KBH6510AS122700 [N]150.0 [bar]van boven
KBH6510AS1A22700 [N]150.0 [bar]van voren
KBH6510BS122700 [N]150.0 [bar]van voren
KBH6510BS1A22700 [N]150.0 [bar]van voren
KBH6510BS322700 [N]150.0 [bar]van voren
KBH6510BS3A22700 [N]150.0 [bar]van voren
KBH6512FS122700 [N]150.0 [bar]van voren
KBH6512FS1A22700 [N]150.0 [bar]van voren
KBH6514CS122700 [N]150.0 [bar]van voren
KBH6514ES122700 [N]150.0 [bar]van voren
KBH6514ES1A22700 [N]150.0 [bar]van voren
KBH6502DS322700 [N]150.0 [bar]van voren
KBH6502DS3A22700 [N]150.0 [bar]van voren
KBH6505BS222700 [N]150.0 [bar]van voren
KBH6505BS2A22700 [N]150.0 [bar]van voren
KBH-TELEFON
KBH6514GS122700 [N]150.0 [bar]van voren
KBH6514GS1A22700 [N]150.0 [bar]van voren
KBH6501FS117000 [N]150.0 [bar]van voren
KBH6501FS1A17000 [N]150.0 [bar]van voren
KBH6515AS122700 [N]150.0 [bar]van voren
KBH8501IS113700 [N]150.0 [bar]van boven
KBH8501ES127400 [N]150.0 [bar]van voren
KBH8501ES1A27400 [N]150.0 [bar]van voren
KBH8501AS127400 [N]150.0 [bar]van voren
KBH8501AS1A27400 [N]150.0 [bar]van voren
KBH8501BS113700 [N]150.0 [bar]van boven
KBH8501BS1A13700 [N]150.0 [bar]van voren
KBH8501JS113700 [N]150.0 [bar]van voren
KBH8501JS1A13700 [N]150.0 [bar]van voren
KBH8510BS127400 [N]150.0 [bar]van voren
KBH8510BS1A27400 [N]150.0 [bar]van voren
KBH3502DS33500 [N]150.0 [bar]van voren
KBH3502DS3A3500 [N]150.0 [bar]van voren
KBH10001BS134000 [N]150.0 [bar]van boven
KBH10001BS1A34000 [N]150.0 [bar]van voren
KBH10001AS134000 [N]150.0 [bar]van voren
KBH10001AS1A34000 [N]150.0 [bar]van voren
KBH10001ES134000 [N]150.0 [bar]van voren
KBH10001ES1A34000 [N]150.0 [bar]van voren
KBH10002DS134000 [N]150.0 [bar]van voren
KBH10002DS1A34000 [N]150.0 [bar]van voren
KBH10003AS134000 [N]150.0 [bar]van voren
KBH10003AS1A34000 [N]150.0 [bar]van voren
KBH10005BS134000 [N]150.0 [bar]van voren
KBH10005BS1A34000 [N]150.0 [bar]van voren
KBH4501ES3-A7400 [N]100.0 [bar]van voren
KBH4501ES3A-A7400 [N]100.0 [bar]van voren
KBH4514BS19900 [N]150.0 [bar]van voren
KBH12505BS146000 [N]150.0 [bar]van voren
KBH12505BS1A46000 [N]150.0 [bar]van voren
KBH5502DS313700 [N]150.0 [bar]van voren
KBH5502DS3A13700 [N]150.0 [bar]van voren
KBH5514BS113700 [N]150.0 [bar]van voren
  1. Profielrailsgeleiding
    Beschikbaar voor alle gangbare profielrailgeleidingen
  2. Retourveer
    Nauwsluitend geïntegreerd in de vingers
  3. Klem- en remschoenen
    Worden tegen de vrije vlakken van de profielrailgeleiding gedrukt
  4. Behuizing
  5. Membraan
    voor drukregeling
  6. Afstroper
    Kan optioneel worden besteld

Klem- en remelementen | hydraulisch
Serie KBH

  • Uitgebreid productassortiment
    Voor alle gangbare profielrailgeleidingen
  • Energieloos geopend (maakcontact NO)
    Met druk sluitend
  • Uiterst duurzaam
    Tot 10 miljoen statische klemcycli
Bestelnr.HoudkrachtNominale bedrijfsdrukMontagerichting
KBH2501RS12200 [N]100.0 [bar]van voren
KBH2501RS1A2200 [N]100.0 [bar]van voren
KBH3001RS13000 [N]100.0 [bar]van voren
KBH3001RS1A3000 [N]100.0 [bar]van voren
KBH3001SS13000 [N]100.0 [bar]van voren
KBH3001SS1A3000 [N]100.0 [bar]van voren
KBH6501SS122700 [N]150.0 [bar]van voren
KBH6501SS1A22700 [N]150.0 [bar]van voren
KBH6501RS122700 [N]150.0 [bar]van voren
KBH6501RS1A22700 [N]150.0 [bar]van voren
KBH3501RS15700 [N]150.0 [bar]van voren
KBH3501RS1A5700 [N]150.0 [bar]van voren
KBH3501SS15700 [N]150.0 [bar]van voren
KBH3501SS1A5700 [N]150.0 [bar]van voren
KBH4501RS19900 [N]150.0 [bar]van voren
KBH4501RS1A9900 [N]150.0 [bar]van voren
KBH4501SS19900 [N]150.0 [bar]van voren
KBH4501SS1A9900 [N]150.0 [bar]van voren
KBH5501RS113700 [N]150.0 [bar]van voren
KBH5501RS1A13700 [N]150.0 [bar]van voren
KBH5501SS113700 [N]150.0 [bar]van voren
KBH5501SS1A13700 [N]150.0 [bar]van voren
  1. Profielrailsgeleiding
    Beschikbaar voor alle gangbare profielrailgeleidingen
  2. Retourveer
    Nauwsluitend geïntegreerd in de vingers
  3. Klem- en remschoenen
    Worden tegen de vrije vlakken van de profielrailgeleiding gedrukt
  4. Behuizing
  5. Membraan
    voor drukregeling
  6. Afstroper
    Kan optioneel worden besteld
